创建交错菜单动画

一个应用程序屏幕可能包含多个动画。同时播放所有动画可能会让人感到不知所措。一个接一个地播放动画可能需要太长时间。更好的选择是交错动画。每个动画在不同的时间开始，但动画重叠以创建更短的持续时间。在本食谱中，您将构建一个带有动画内容的抽屉菜单，该菜单是交错的，并且有一个在底部弹出的按钮。

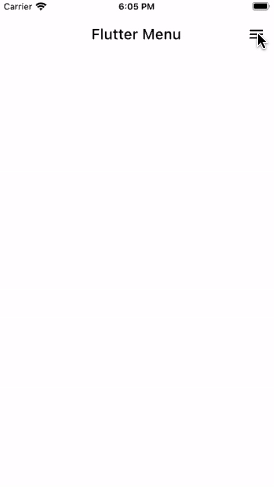

以下动画展示了应用程序的行为。

抽屉菜单显示标题列表，并在菜单底部显示一个“开始使用”按钮。

定义一个名为Menu的状态小部件，它以静态位置显示列表和按钮。

class Menu extends StatefulWidget {
  const Menu({super.key});

  @override
  State<Menu> createState() => _MenuState();
}

class _MenuState extends State<Menu> {
  static const _menuTitles = [
    'Declarative Style',
    'Premade Widgets',
    'Stateful Hot Reload',
    'Native Performance',
    'Great Community',
  ];

  @override
  Widget build(BuildContext context) {
    return Container(
      color: Colors.white,
      child: Stack(
        fit: StackFit.expand,
        children: [
          _buildFlutterLogo(),
          _buildContent(),
        ],
      ),
    );
  }

  Widget _buildFlutterLogo() {
    // TODO: We'll implement this later.
    return Container();
  }

  Widget _buildContent() {
    return Column(
      crossAxisAlignment: CrossAxisAlignment.start,
      children: [
        const SizedBox(height: 16),
        ..._buildListItems(),
        const Spacer(),
        _buildGetStartedButton(),
      ],
    );
  }

  List<Widget> _buildListItems() {
    final listItems = <Widget>[];
    for (var i = 0; i < _menuTitles.length; ++i) {
      listItems.add(
        Padding(
          padding: const EdgeInsets.symmetric(horizontal: 36, vertical: 16),
          child: Text(
            _menuTitles[i],
            textAlign: TextAlign.left,
            style: const TextStyle(
              fontSize: 24,
              fontWeight: FontWeight.w500,
            ),
          ),
        ),
      );
    }
    return listItems;
  }

  Widget _buildGetStartedButton() {
    return SizedBox(
      width: double.infinity,
      child: Padding(
        padding: const EdgeInsets.all(24),
        child: ElevatedButton(
          style: ElevatedButton.styleFrom(
            shape: const StadiumBorder(),
            backgroundColor: Colors.blue,
            padding: const EdgeInsets.symmetric(horizontal: 48, vertical: 14),
          ),
          onPressed: () {},
          child: const Text(
            'Get Started',
            style: TextStyle(
              color: Colors.white,
              fontSize: 22,
            ),
          ),
        ),
      ),
    );
  }
}

动画时序的控制需要一个AnimationController。

将SingleTickerProviderStateMixin添加到MenuState类中。然后，声明并实例化一个AnimationController。

class _MenuState extends State<Menu> with SingleTickerProviderStateMixin {
  late AnimationController _staggeredController;

  @override
  void initState() {
    super.initState();

    _staggeredController = AnimationController(
      vsync: this,
    );
  }
}

  @override
  void dispose() {
    _staggeredController.dispose();
    super.dispose();
  }
}

每次动画之前的延迟时间由您决定。定义动画延迟、单个动画持续时间和总动画持续时间。

class _MenuState extends State<Menu> with SingleTickerProviderStateMixin {
  static const _initialDelayTime = Duration(milliseconds: 50);
  static const _itemSlideTime = Duration(milliseconds: 250);
  static const _staggerTime = Duration(milliseconds: 50);
  static const _buttonDelayTime = Duration(milliseconds: 150);
  static const _buttonTime = Duration(milliseconds: 500);
  final _animationDuration = _initialDelayTime +
      (_staggerTime * _menuTitles.length) +
      _buttonDelayTime +
      _buttonTime;
}

在本例中，所有动画都延迟了 50 毫秒。之后，列表项开始出现。每个列表项的出现都比前一个列表项开始滑动进入延迟 50 毫秒。每个列表项从右到左滑动需要 250 毫秒。在最后一个列表项开始滑动进入后，底部的按钮再等待 150 毫秒弹出。按钮动画需要 500 毫秒。

定义每个延迟和动画持续时间后，计算总持续时间，以便可以用来计算单个动画时间。

以下图表显示了所需的动画时间。

为了在较大动画的子部分期间对值进行动画处理，Flutter 提供了Interval类。Interval接受开始时间百分比和结束时间百分比。然后，可以使用该Interval在这些开始和结束时间之间对值进行动画处理，而不是使用整个动画的开始和结束时间。例如，对于一个持续 1 秒的动画，从 0.2 到 0.5 的间隔将从 200 毫秒（20%）开始，在 500 毫秒（50%）结束。

声明并计算每个列表项的Interval和底部按钮Interval。

class _MenuState extends State<Menu> with SingleTickerProviderStateMixin {
  final List<Interval> _itemSlideIntervals = [];
  late Interval _buttonInterval;

  @override
  void initState() {
    super.initState();

    _createAnimationIntervals();

    _staggeredController = AnimationController(
      vsync: this,
      duration: _animationDuration,
    );
  }

  void _createAnimationIntervals() {
    for (var i = 0; i < _menuTitles.length; ++i) {
      final startTime = _initialDelayTime + (_staggerTime * i);
      final endTime = startTime + _itemSlideTime;
      _itemSlideIntervals.add(
        Interval(
          startTime.inMilliseconds / _animationDuration.inMilliseconds,
          endTime.inMilliseconds / _animationDuration.inMilliseconds,
        ),
      );
    }

    final buttonStartTime =
        Duration(milliseconds: (_menuTitles.length * 50)) + _buttonDelayTime;
    final buttonEndTime = buttonStartTime + _buttonTime;
    _buttonInterval = Interval(
      buttonStartTime.inMilliseconds / _animationDuration.inMilliseconds,
      buttonEndTime.inMilliseconds / _animationDuration.inMilliseconds,
    );
  }
}

交错动画在菜单变得可见时立即播放。

在initState()中启动动画。

@override
void initState() {
  super.initState();

  _createAnimationIntervals();

  _staggeredController = AnimationController(
    vsync: this,
    duration: _animationDuration,
  )..forward();
}

每个列表项从右到左滑动并同时淡入。

使用列表项的Interval和easeOut曲线为每个列表项的透明度和平移值制作动画。

List<Widget> _buildListItems() {
  final listItems = <Widget>[];
  for (var i = 0; i < _menuTitles.length; ++i) {
    listItems.add(
      AnimatedBuilder(
        animation: _staggeredController,
        builder: (context, child) {
          final animationPercent = Curves.easeOut.transform(
            _itemSlideIntervals[i].transform(_staggeredController.value),
          );
          final opacity = animationPercent;
          final slideDistance = (1.0 - animationPercent) * 150;

          return Opacity(
            opacity: opacity,
            child: Transform.translate(
              offset: Offset(slideDistance, 0),
              child: child,
            ),
          );
        },
        child: Padding(
          padding: const EdgeInsets.symmetric(horizontal: 36, vertical: 16),
          child: Text(
            _menuTitles[i],
            textAlign: TextAlign.left,
            style: const TextStyle(
              fontSize: 24,
              fontWeight: FontWeight.w500,
            ),
          ),
        ),
      ),
    );
  }
  return listItems;
}

使用相同的方法来动画化底部按钮的不透明度和缩放。这次，使用elasticOut曲线来给按钮一个弹簧效果。

Widget _buildGetStartedButton() {
  return SizedBox(
    width: double.infinity,
    child: Padding(
      padding: const EdgeInsets.all(24),
      child: AnimatedBuilder(
        animation: _staggeredController,
        builder: (context, child) {
          final animationPercent = Curves.elasticOut.transform(
              _buttonInterval.transform(_staggeredController.value));
          final opacity = animationPercent.clamp(0.0, 1.0);
          final scale = (animationPercent * 0.5) + 0.5;

          return Opacity(
            opacity: opacity,
            child: Transform.scale(
              scale: scale,
              child: child,
            ),
          );
        },
        child: ElevatedButton(
          style: ElevatedButton.styleFrom(
            shape: const StadiumBorder(),
            backgroundColor: Colors.blue,
            padding: const EdgeInsets.symmetric(horizontal: 48, vertical: 14),
          ),
          onPressed: () {},
          child: const Text(
            'Get Started',
            style: TextStyle(
              color: Colors.white,
              fontSize: 22,
            ),
          ),
        ),
      ),
    ),
  );
}

恭喜！您现在拥有一个动画菜单，其中每个列表项的出现是交错的，然后是一个弹出的底部按钮。

import 'package:flutter/material.dart';

void main() {
  runApp(
    const MaterialApp(
      home: ExampleStaggeredAnimations(),
      debugShowCheckedModeBanner: false,
    ),
  );
}

class ExampleStaggeredAnimations extends StatefulWidget {
  const ExampleStaggeredAnimations({
    super.key,
  });

  @override
  State<ExampleStaggeredAnimations> createState() =>
      _ExampleStaggeredAnimationsState();
}

class _ExampleStaggeredAnimationsState extends State<ExampleStaggeredAnimations>
    with SingleTickerProviderStateMixin {
  late AnimationController _drawerSlideController;

  @override
  void initState() {
    super.initState();

    _drawerSlideController = AnimationController(
      vsync: this,
      duration: const Duration(milliseconds: 150),
    );
  }

  @override
  void dispose() {
    _drawerSlideController.dispose();
    super.dispose();
  }

  bool _isDrawerOpen() {
    return _drawerSlideController.value == 1.0;
  }

  bool _isDrawerOpening() {
    return _drawerSlideController.status == AnimationStatus.forward;
  }

  bool _isDrawerClosed() {
    return _drawerSlideController.value == 0.0;
  }

  void _toggleDrawer() {
    if (_isDrawerOpen() || _isDrawerOpening()) {
      _drawerSlideController.reverse();
    } else {
      _drawerSlideController.forward();
    }
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      backgroundColor: Colors.white,
      appBar: _buildAppBar(),
      body: Stack(
        children: [
          _buildContent(),
          _buildDrawer(),
        ],
      ),
    );
  }

  PreferredSizeWidget _buildAppBar() {
    return AppBar(
      title: const Text(
        'Flutter Menu',
        style: TextStyle(
          color: Colors.black,
        ),
      ),
      backgroundColor: Colors.transparent,
      elevation: 0.0,
      automaticallyImplyLeading: false,
      actions: [
        AnimatedBuilder(
          animation: _drawerSlideController,
          builder: (context, child) {
            return IconButton(
              onPressed: _toggleDrawer,
              icon: _isDrawerOpen() || _isDrawerOpening()
                  ? const Icon(
                      Icons.clear,
                      color: Colors.black,
                    )
                  : const Icon(
                      Icons.menu,
                      color: Colors.black,
                    ),
            );
          },
        ),
      ],
    );
  }

  Widget _buildContent() {
    // Put page content here.
    return const SizedBox();
  }

  Widget _buildDrawer() {
    return AnimatedBuilder(
      animation: _drawerSlideController,
      builder: (context, child) {
        return FractionalTranslation(
          translation: Offset(1.0 - _drawerSlideController.value, 0.0),
          child: _isDrawerClosed() ? const SizedBox() : const Menu(),
        );
      },
    );
  }
}

class Menu extends StatefulWidget {
  const Menu({super.key});

  @override
  State<Menu> createState() => _MenuState();
}

class _MenuState extends State<Menu> with SingleTickerProviderStateMixin {
  static const _menuTitles = [
    'Declarative style',
    'Premade widgets',
    'Stateful hot reload',
    'Native performance',
    'Great community',
  ];

  static const _initialDelayTime = Duration(milliseconds: 50);
  static const _itemSlideTime = Duration(milliseconds: 250);
  static const _staggerTime = Duration(milliseconds: 50);
  static const _buttonDelayTime = Duration(milliseconds: 150);
  static const _buttonTime = Duration(milliseconds: 500);
  final _animationDuration = _initialDelayTime +
      (_staggerTime * _menuTitles.length) +
      _buttonDelayTime +
      _buttonTime;

  late AnimationController _staggeredController;
  final List<Interval> _itemSlideIntervals = [];
  late Interval _buttonInterval;

  @override
  void initState() {
    super.initState();

    _createAnimationIntervals();

    _staggeredController = AnimationController(
      vsync: this,
      duration: _animationDuration,
    )..forward();
  }

  void _createAnimationIntervals() {
    for (var i = 0; i < _menuTitles.length; ++i) {
      final startTime = _initialDelayTime + (_staggerTime * i);
      final endTime = startTime + _itemSlideTime;
      _itemSlideIntervals.add(
        Interval(
          startTime.inMilliseconds / _animationDuration.inMilliseconds,
          endTime.inMilliseconds / _animationDuration.inMilliseconds,
        ),
      );
    }

    final buttonStartTime =
        Duration(milliseconds: (_menuTitles.length * 50)) + _buttonDelayTime;
    final buttonEndTime = buttonStartTime + _buttonTime;
    _buttonInterval = Interval(
      buttonStartTime.inMilliseconds / _animationDuration.inMilliseconds,
      buttonEndTime.inMilliseconds / _animationDuration.inMilliseconds,
    );
  }

  @override
  void dispose() {
    _staggeredController.dispose();
    super.dispose();
  }

  @override
  Widget build(BuildContext context) {
    return Container(
      color: Colors.white,
      child: Stack(
        fit: StackFit.expand,
        children: [
          _buildFlutterLogo(),
          _buildContent(),
        ],
      ),
    );
  }

  Widget _buildFlutterLogo() {
    return const Positioned(
      right: -100,
      bottom: -30,
      child: Opacity(
        opacity: 0.2,
        child: FlutterLogo(
          size: 400,
        ),
      ),
    );
  }

  Widget _buildContent() {
    return Column(
      crossAxisAlignment: CrossAxisAlignment.start,
      children: [
        const SizedBox(height: 16),
        ..._buildListItems(),
        const Spacer(),
        _buildGetStartedButton(),
      ],
    );
  }

  List<Widget> _buildListItems() {
    final listItems = <Widget>[];
    for (var i = 0; i < _menuTitles.length; ++i) {
      listItems.add(
        AnimatedBuilder(
          animation: _staggeredController,
          builder: (context, child) {
            final animationPercent = Curves.easeOut.transform(
              _itemSlideIntervals[i].transform(_staggeredController.value),
            );
            final opacity = animationPercent;
            final slideDistance = (1.0 - animationPercent) * 150;

            return Opacity(
              opacity: opacity,
              child: Transform.translate(
                offset: Offset(slideDistance, 0),
                child: child,
              ),
            );
          },
          child: Padding(
            padding: const EdgeInsets.symmetric(horizontal: 36, vertical: 16),
            child: Text(
              _menuTitles[i],
              textAlign: TextAlign.left,
              style: const TextStyle(
                fontSize: 24,
                fontWeight: FontWeight.w500,
              ),
            ),
          ),
        ),
      );
    }
    return listItems;
  }

  Widget _buildGetStartedButton() {
    return SizedBox(
      width: double.infinity,
      child: Padding(
        padding: const EdgeInsets.all(24),
        child: AnimatedBuilder(
          animation: _staggeredController,
          builder: (context, child) {
            final animationPercent = Curves.elasticOut.transform(
                _buttonInterval.transform(_staggeredController.value));
            final opacity = animationPercent.clamp(0.0, 1.0);
            final scale = (animationPercent * 0.5) + 0.5;

            return Opacity(
              opacity: opacity,
              child: Transform.scale(
                scale: scale,
                child: child,
              ),
            );
          },
          child: ElevatedButton(
            style: ElevatedButton.styleFrom(
              shape: const StadiumBorder(),
              backgroundColor: Colors.blue,
              padding: const EdgeInsets.symmetric(horizontal: 48, vertical: 14),
            ),
            onPressed: () {},
            child: const Text(
              'Get started',
              style: TextStyle(
                color: Colors.white,
                fontSize: 22,
              ),
            ),
          ),
        ),
      ),
    );
  }
}
