Navigator 提供了通过通用标识符在应用的任何部分导航到命名路由的功能。在某些情况下,您可能还需要向命名路由传递参数。例如,您可能希望导航到 /user 路由并向该路由传递用户信息。

您可以使用 Navigator.pushNamed() 方法的 arguments 参数来完成此任务。使用 ModalRoute.of() 方法或在提供给 MaterialAppCupertinoApp 构造函数的 onGenerateRoute() 函数中提取参数。

本示例演示了如何使用以下步骤将参数传递给命名路由并使用 ModalRoute.of()onGenerateRoute() 读取参数:

  1. 定义需要传递的参数。
  2. 创建一个提取参数的小部件。
  3. routes 表中注册该小部件。
  4. 导航到该小部件。

1. 定义需要传递的参数

#

首先,定义需要传递给新路由的参数。在此示例中,传递两个数据:屏幕的 title 和一个 message

要传递这两个数据,请创建一个存储此信息的类。

dart
// You can pass any object to the arguments parameter.
// In this example, create a class that contains both
// a customizable title and message.
class ScreenArguments {
  final String title;
  final String message;

  ScreenArguments(this.title, this.message);
}

2. 创建一个提取参数的小部件

#

接下来,创建一个从小部件 ScreenArguments 中提取并显示 titlemessage 的小部件。要访问 ScreenArguments,请使用 ModalRoute.of() 方法。此方法返回带有参数的当前路由。

dart
// A Widget that extracts the necessary arguments from
// the ModalRoute.
class ExtractArgumentsScreen extends StatelessWidget {
  const ExtractArgumentsScreen({super.key});

  static const routeName = '/extractArguments';

  @override
  Widget build(BuildContext context) {
    // Extract the arguments from the current ModalRoute
    // settings and cast them as ScreenArguments.
    final args = ModalRoute.of(context)!.settings.arguments as ScreenArguments;

    return Scaffold(
      appBar: AppBar(title: Text(args.title)),
      body: Center(child: Text(args.message)),
    );
  }
}

3. 在 routes 表中注册小部件

#

接下来,向提供给 MaterialApp 小部件的 routes 添加一个条目。routes 定义了应根据路由名称创建哪个小部件。

dart
MaterialApp(
  routes: {
    ExtractArgumentsScreen.routeName: (context) =>
        const ExtractArgumentsScreen(),
  },
)

4. 导航到该小部件

#

最后,当用户点击按钮时,使用 Navigator.pushNamed() 导航到 ExtractArgumentsScreen。通过 arguments 属性将参数提供给路由。ExtractArgumentsScreen 从这些参数中提取 titlemessage

dart
// A button that navigates to a named route.
// The named route extracts the arguments
// by itself.
ElevatedButton(
  onPressed: () {
    // When the user taps the button,
    // navigate to a named route and
    // provide the arguments as an optional
    // parameter.
    Navigator.pushNamed(
      context,
      ExtractArgumentsScreen.routeName,
      arguments: ScreenArguments(
        'Extract Arguments Screen',
        'This message is extracted in the build method.',
      ),
    );
  },
  child: const Text('Navigate to screen that extracts arguments'),
),

或者,使用 onGenerateRoute 提取参数

#

除了直接在小部件内部提取参数外,您还可以在 onGenerateRoute() 函数中提取参数并将它们传递给小部件。

onGenerateRoute() 函数根据给定的 RouteSettings 创建正确的路由。

dart
MaterialApp(
  // Provide a function to handle named routes.
  // Use this function to identify the named
  // route being pushed, and create the correct
  // Screen.
  onGenerateRoute: (settings) {
    // If you push the PassArguments route
    if (settings.name == PassArgumentsScreen.routeName) {
      // Cast the arguments to the correct
      // type: ScreenArguments.
      final args = settings.arguments as ScreenArguments;

      // Then, extract the required data from
      // the arguments and pass the data to the
      // correct screen.
      return MaterialPageRoute(
        builder: (context) {
          return PassArgumentsScreen(
            title: args.title,
            message: args.message,
          );
        },
      );
    }
    // The code only supports
    // PassArgumentsScreen.routeName right now.
    // Other values need to be implemented if we
    // add them. The assertion here will help remind
    // us of that higher up in the call stack, since
    // this assertion would otherwise fire somewhere
    // in the framework.
    assert(false, 'Need to implement ${settings.name}');
    return null;
  },
)

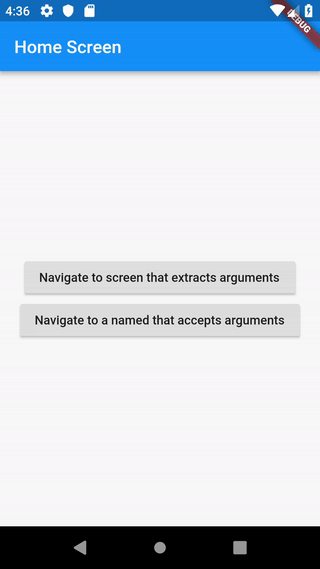

互动示例

#
import 'package:flutter/material.dart';

void main() => runApp(const MyApp());

class MyApp extends StatelessWidget {
  const MyApp({super.key});

  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      routes: {
        ExtractArgumentsScreen.routeName: (context) =>
            const ExtractArgumentsScreen(),
      },
      // Provide a function to handle named routes.
      // Use this function to identify the named
      // route being pushed, and create the correct
      // Screen.
      onGenerateRoute: (settings) {
        // If you push the PassArguments route
        if (settings.name == PassArgumentsScreen.routeName) {
          // Cast the arguments to the correct
          // type: ScreenArguments.
          final args = settings.arguments as ScreenArguments;

          // Then, extract the required data from
          // the arguments and pass the data to the
          // correct screen.
          return MaterialPageRoute(
            builder: (context) {
              return PassArgumentsScreen(
                title: args.title,
                message: args.message,
              );
            },
          );
        }
        // The code only supports
        // PassArgumentsScreen.routeName right now.
        // Other values need to be implemented if we
        // add them. The assertion here will help remind
        // us of that higher up in the call stack, since
        // this assertion would otherwise fire somewhere
        // in the framework.
        assert(false, 'Need to implement ${settings.name}');
        return null;
      },
      title: 'Navigation with Arguments',
      home: const HomeScreen(),
    );
  }
}

class HomeScreen extends StatelessWidget {
  const HomeScreen({super.key});

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(title: const Text('Home Screen')),
      body: Center(
        child: Column(
          mainAxisAlignment: MainAxisAlignment.center,
          children: [
            // A button that navigates to a named route.
            // The named route extracts the arguments
            // by itself.
            ElevatedButton(
              onPressed: () {
                // When the user taps the button,
                // navigate to a named route and
                // provide the arguments as an optional
                // parameter.
                Navigator.pushNamed(
                  context,
                  ExtractArgumentsScreen.routeName,
                  arguments: ScreenArguments(
                    'Extract Arguments Screen',
                    'This message is extracted in the build method.',
                  ),
                );
              },
              child: const Text('Navigate to screen that extracts arguments'),
            ),
            // A button that navigates to a named route.
            // For this route, extract the arguments in
            // the onGenerateRoute function and pass them
            // to the screen.
            ElevatedButton(
              onPressed: () {
                // When the user taps the button, navigate
                // to a named route and provide the arguments
                // as an optional parameter.
                Navigator.pushNamed(
                  context,
                  PassArgumentsScreen.routeName,
                  arguments: ScreenArguments(
                    'Accept Arguments Screen',
                    'This message is extracted in the onGenerateRoute '
                        'function.',
                  ),
                );
              },
              child: const Text('Navigate to a named that accepts arguments'),
            ),
          ],
        ),
      ),
    );
  }
}

// A Widget that extracts the necessary arguments from
// the ModalRoute.
class ExtractArgumentsScreen extends StatelessWidget {
  const ExtractArgumentsScreen({super.key});

  static const routeName = '/extractArguments';

  @override
  Widget build(BuildContext context) {
    // Extract the arguments from the current ModalRoute
    // settings and cast them as ScreenArguments.
    final args = ModalRoute.of(context)!.settings.arguments as ScreenArguments;

    return Scaffold(
      appBar: AppBar(title: Text(args.title)),
      body: Center(child: Text(args.message)),
    );
  }
}

// A Widget that accepts the necessary arguments via the
// constructor.
class PassArgumentsScreen extends StatelessWidget {
  static const routeName = '/passArguments';

  final String title;
  final String message;

  // This Widget accepts the arguments as constructor
  // parameters. It does not extract the arguments from
  // the ModalRoute.
  //
  // The arguments are extracted by the onGenerateRoute
  // function provided to the MaterialApp widget.
  const PassArgumentsScreen({
    super.key,
    required this.title,
    required this.message,
  });

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(title: Text(title)),
      body: Center(child: Text(message)),
    );
  }
}

// You can pass any object to the arguments parameter.
// In this example, create a class that contains both
// a customizable title and message.
class ScreenArguments {
  final String title;
  final String message;

  ScreenArguments(this.title, this.message);
}
